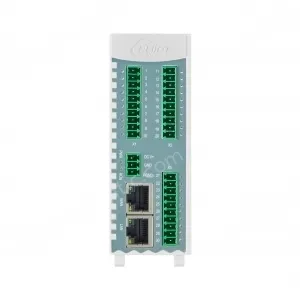

Barium-rhenium technology IOy series IO module adheres to the product design concept of barium-rhenium technology innovation, barium-rhenium technology BL196 MQTT remote IO users can freely combine 1-3 Y-series IO boards according to their needs, such as BL196 with 3 Y11 (8DI) can form a 24DI independent IO module, and also supports mixing and matching such as BL196 with Y11 (8DI), Y31 (4AI), Y52 (2PT) can be combined into 8DI+4AI+2PT independent IOAt present, it has supported 26 IO board models such as DI, DO, AI, AO, PT, RTD, counting, encoders, etc., so that it can form more than 10,000 IO configuration combinations. BL196 adopts industrial-grade design to meet the harsh industrial site use environment, with excellent anti-interference performance, 12 EMC and EMI tests can make the equipment operate normally in harsh environments.

Functional features:

Highly customizable and flexible: Users can freely combine IO boards according to their needs. For example, BL196 can be paired with 3 Y11 (8DI) to form a 24DI stand-alone IO module, or mix and match different types of IO boards, such as Y11 (8DI), Y31 (4AI), and Y52 (2PT) to form an IO module with both digital input (DI), analog input (AI), and thermocouple input (PT). This flexibility is important for industrial applications that require customized solutions.

Support a variety of IO types: At present, the system supports 26 different IO board models such as DI (digital input), DO (digital output), AI (analog input), AO (analog output), PT (thermocouple), RTD (resistance temperature sensing), counter and encoder, which makes BL190 suitable for various complex and changeable industrial environments.

Extensive configuration combinations: With the ability to offer more than 10,000 different IO configuration combinations, this diversity ensures that it can meet almost all types of industrial automation needs.

Industrial-grade design and stability: The BL196 adopts an industrial-grade design, which can operate stably in harsh industrial environments. Excellent immunity to interference is critical for industrial applications, as these environments are often fraught with electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues.

Naming conventions:

IOy series I/O modules support 1-3 I/O boards for combination, the example is as follows:

BL196-Y11 MQTT protocol 8DI remote I/O module

BL196-Y11-Y11 MQTT protocol 16DI remote I/O module

BL196-Y11-Y11-Y11 MQTT protocol 24DI remote I/O module

BL196-Y11-Y21-Y31 MQTT protocol: 8DI+8DO+4AI remote I/O module
