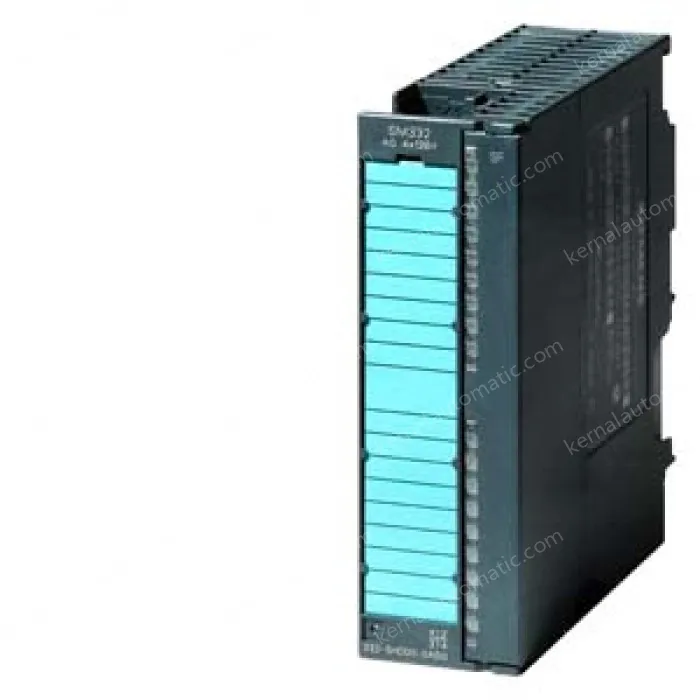

      SM 332 analog output modules
      • SM 332 analog output modules

      SM 332 analog output modules

      ★ ★ ★ ★ ★ 4.9 4693 Reviews

      Model: 6ES7332-7ND02-0AB0

      Order No:

      SKU: 10000004012901

      Category: S7-300

      Brand: SIEMENS

      Condition: New Sealed Under Guarantee

      Size: 13.10CM, 15.10CM, 5.20CM; Diam:0.00cm

      Weight: 0.00KG

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      You May Also Like

      Selling List

      Description Reviews
      6ES7332-7ND02-0AB0 SIMATIC S7,SM 332 ANALOG OUTPUT
      Artikelnummer6ES7332-7ND02-0AB0
      SIMATIC S7,SM 332 ANALOG OUTPUT CHANNEL TO CHANNEL ISOLATION, 4 AO, 16 BIT RESOLUTION, 0-10V, 1-5V, +/-10V, +/-20MA, 0/4 - 20MA, 20 PIN, FIT FOR ISOCHRONE MODE IMPROVED DP-CYCLE TIME FOR ISOCHRONE MODE
      Supply voltage
      Load voltage L+
      ● Rated value (DC)24 V
      Input current
      from load voltage L+ (without load), max.290 mA
      from backplane bus 5 V DC, max.120 mA
      Power losses
      Power loss, typ.3 W
      Analog outputs
      Number of analog outputs4; Isochronous mode
      Voltage output, short-circuit protectionYes
      Voltage output, short-circuit current, max.40 mA
      Current output, no-load voltage, max.18 V
      Output ranges, voltage
      ● 0 to 10 VYes
      ● 1 to 5 VYes
      ● -10 to +10 VYes
      Output ranges, current
      ● 0 to 20 mAYes
      ● -20 to +20 mAYes
      ● 4 to 20 mAYes
      Load impedance (in rated range of output)
      ● with voltage outputs, min.1 kΩ
      ● with voltage outputs, capacitive load, max.1 µF
      ● with current outputs, max.500 Ω
      ● with current outputs, inductive load, max.1 mH
      Cable length
      ● Cable length, shielded, max.200 m
      Analog value creation
      Integration and conversion time/resolution per channel
      ● Resolution with overrange (bit including sign), max.16 bit
      ● Conversion time (per channel)200 µs; in isochronous mode 640 µs
      Settling time
      ● for resistive load0.2 ms
      ● for capacitive load3.3 ms
      ● for inductive load0.5 ms
      Errors/accuracies
      Operational limit in overall temperature range
      ● Voltage, relative to output area, (+/-)0.12 %
      ● Current, relative to output area, (+/-)0.18 %
      Basic error limit (operational limit at 25 °C)
      ● Voltage, relative to output area, (+/-)0.02 %
      ● Current, relative to output area, (+/-)0.02 %
      Interrupts/diagnostics/status information
      Substitute values connectableYes; Parameterizable
      Alarms
      ● Diagnostic alarmYes; Parameterizable
      Diagnostic messages
      ● Diagnostic information readableYes
      ● DiagnosticsYes; Diagnostic information readable
      Diagnostics indication LED
      ● Group error SF (red)Yes
      Galvanic isolation
      Galvanic isolation analog outputs
      ● between the channels and the backplane busYes
      Isolation
      Isolation checked with1500 V DC
      Connection method
      required front connector20-pin
      Dimensions
      Width40 mm
      Height125 mm
      Depth120 mm
      Weights
      Weight, approx.220 g
      last modified:13.10.2014
      6ES7332-7ND02-0AB0
      ProductArticle Number (Market Facing Number)6ES7332-7ND02-0AB0Product Description SIMATIC S7-300, Analog output SM 332, isolated by channel, 4 AI, Resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20mA, 20-pole, suitable for isochronous mode improved bus cycle times for the isochronous modeProduct familySM 332 analog output modulesProduct Lifecycle (PLM)PM400:Phase Out StartedPLM Effective DateProduct phase-out since: 01.10.2023Price dataRegion Specific PriceGroup / Headquarter Price Group2AP / 2APList Price Show pricesCustomer Price Show pricesSurcharge for Raw MaterialsNoneMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : EAR99HEstimated dispatch time10 Day/DaysNet Weight (kg)0,297 KgPackaging Dimension13,10 x 15,10 x 5,20Package size unit of measureCMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4025515071327UPC662643303353Commodity Code85389091LKZ_FDB/ CatalogIDST73Product Group2288Group CodeR151Country of originGermanyCompliance with the substance restrictions according to RoHS directiveSince: 31.03.2008Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.WEEE (2012/19/EU) Take-Back ObligationYesREACH Art. 33 Duty to inform according to the current list of candidates
      Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Lead

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Lead monoxide (lead oxide)

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      lblREACHCode0236 > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      lblREACHCode0236

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      Perfluorobutane sulfonic ... > 0, 1 % (w / w)

      Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

      Perfluorobutane sulfonic acid (PFBS) and its salts

      Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

      SCIP number
      Classifications
      VersionClassification
      eClass1227-24-22-01
      eClass627-24-22-01
      eClass7.127-24-22-01
      eClass827-24-22-01
      eClass927-24-22-01
      eClass9.127-24-22-01
      ETIM7EC001420
      ETIM8EC001420
      ETIM9EC001420
      IDEA43562
      UNSPSC1532-15-17-05
      6ES7332-7ND02-0AB0
      SIMATIC S7-300, Analog output SM 332, isolated by channel, 4 AI, Resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20mA, 20-pole, suitable for isochronous mode improved bus cycle times for the isochronous mode
